Session 02: Intermediate Visual Analytics

DATA MODELING

ADVANCED CHARTS

CALCULATIONS

PARAMETERS

FILTERING

Learning Goals

By the end of this session, you should be able to:

Combine data using relationships, joins, unions, and blending
Understand Tableau’s logical and physical data model
Create calculated fields at different levels of evaluation
Use basic Tableau functions in analytical calculations
Apply Level of Detail (LOD) expressions correctly
Use parameters for interactive analysis
Understand Tableau’s filter order of operations
Build advanced analytical charts such as area charts, bullet charts, and box plots
Design interactive dashboards with actions, filters, and tooltips

Overview

This session moves from basic chart building to analytical modeling and interactive dashboard design.

You will learn how Tableau:

Combines data from multiple tables and sources
Evaluates calculations at different levels of detail
Uses filters and parameters to control analytical logic
Supports advanced chart types for deeper insight
Enables interactive dashboards for exploratory analysis

From Flat Tables to Analytical Models

In real-world analytics, data rarely exists in a single flat file.

Business questions usually span multiple entities such as:

Customers
Orders
Products
Locations
Time

Poor data modeling can lead to:

Incorrect aggregations
Duplicated values
Slow dashboards
Misleading conclusions

Tableau provides several ways to combine and evaluate data. Choosing the correct method is essential for both accuracy and performance.

flowchart LR
A[Raw Tables] --> B[Data Connection]
B --> C[Data Modeling]
C --> D[Calculations]
D --> E[Filters and Parameters]
E --> F[Visual Analysis]
F --> G[Interactive Dashboard]

Datasets Used in This Session

For this session, we use a multi-table retail dataset consisting of:

customers.csv
customer_addresses.csv
orders.csv and quarterly order files
order_details.csv
products.csv
returns.csv
salespeople.csv

This dataset represents a real-world analytical scenario where multiple tables must be combined to answer business questions.

Dowloading the Datasets Part 1

Dowloading with Pytho

You can download the dataset using Python with the following code:

URL = "https://raw.githubusercontent.com/hovhannisyan91/tableau-analytics-portfolio/refs/heads/main/session02/data"

import pandas as pd
tables = [
    "customers.csv",
    "customer_addresses.csv",
    "orders.csv",
    "order_details.csv",
    "products.csv",
    "returns.csv",
    "salespeople.csv"
]

for table in tables:
    url = f"{URL}/{table}"
    df = pd.read_csv(url)
    df.to_csv(f"data/{table}", index=False)

Dowloading the Datasets Part 2

Now, we will download the quarterly order files using Python. We have 2023_Q1 - 2023_Q5 order files.


URL = "https://raw.githubusercontent.com/hovhannisyan91/tableau-analytics-portfolio/refs/heads/main/session02/data/quarters"

import pandas as pd
tables = [
    "orders_2023_Q1.csv",
    "orders_2023_Q2.csv",
    "orders_2023_Q3.csv",
    "orders_2023_Q4.csv",
    "orders_2024_Q1.csv",
    "orders_2024_Q2.csv",
    "orders_2024_Q3.csv",
    "orders_2024_Q4.csv",
    "orders_2025_Q1.csv",
    "orders_2025_Q2.csv"
]

for table in tables:
    url = f"{URL}/{table}"
    df = pd.read_csv(url)
    df.to_csv(f"data/{table}", index=False)

Connection Types

Tableau supports two main connection modes:

Live connection
Extract connection

Both options have pros an cons, meaning that we should find the trade-offs. The best choice depends on the specific use case, data characteristics, and performance requirements.

Live Connection

A live connection queries the underlying database every time the user interacts with the dashboard.

Use it when:

Data must be up-to-date
The database is well optimized
Dashboard queries are not excessively heavy
Freshness is more important than speed

Considerations:

Performance depends on database speed, network, and query complexity
Complex dashboards may become slow
Inefficient data models can create long load times

Extract Connection

An extract copies data into Tableau’s .hyper format.

Use it when:

Dashboard performance is critical
Data does not need real-time updates
Dashboards contain complex calculations
Many users will access the dashboard

Considerations:

Data can become outdated between refreshes
Refresh schedules must be managed
Extract design should align with upstream refresh timing

Tip

For exploratory work and many production dashboards, extracts are often the best choice because they improve speed and reduce pressure on the source database.

Creating Extracts

Extracts can be created in Tableau Desktopor on the web. Tableau copies data from the remote source into an optimized local structure (.hyper file), which is stored on disk either locally or on Tableau Server or Tableau Cloud.

When creating an extract, Tableau allows you to control:

Storage structure
Filters
Aggregation
Sampling
Incremental refresh settings

Tip

It is better to finalize the data model before creating an extract. Structural changes later may invalidate the extract and require rebuilding it.

Extract Properties

When creating an extract, you can configure:

How the extract stores data
Which rows are included
Whether data is aggregated
Whether incremental refresh is used

how to store

To decide how the extract data should be stored

You can choose between:

Logical Tables (denormalized schema)
Physical Tables (normalized schema)

Logical Tables

Logical tables store one extract table per logical table in the data model.

This works well when:

Relationships are used
Tables should remain conceptually separate
Tableau should resolve combinations dynamically

Physical Tables

Physical tables store one extract table per physical table.

This can be useful when:

Equality joins are used
You want tighter control over storage
You want to reduce extract size in some scenarios

Extract Filters

Extract filters limit the data before it is stored in the extract.

Use them to:

Reduce file size
Improve performance
Limit historical range

Aggregate Data for Visible Dimensions

This option aggregates measures at the visible dimension level.

Benefits:

Fewer rows
Smaller extract size
Better performance

Choose the Rows to Extract

You can select:

All rows
Top N rows where supported

Tableau applies filters and aggregation before sampling.

Incremental Refresh

Incremental refresh adds only new rows since the previous refresh.

Benefits:

Faster refreshes
Less load on source systems

Risk:

Schema changes usually require a full refresh

Note

If the structure of the source data changes (e.g., a new column is added), you must do a full refresh before incremental refresh can resume.

Date/Time Precision Consideration

The Tableau data engine stores time values with precision up to 3 decimal places.

If your database uses higher precision, incremental refresh can create duplicates.

Example:

Database rows:
- 2015-03-13 17:30:56.502352
- 2015-03-13 17:30:56.502852
Tableau stores both as:
- 2015-03-13 17:30:56.502

This can result in duplicate rows after refresh.

Tableau Data Model

Tableau separates data modeling into two layers:

Logical layer
Physical layer

Logical Layer

The logical layer uses relationships.

Characteristics:

Tables remain separate
Tableau combines them at query time based on the view
Reduces duplication risk
Recommended for most analytical models

Physical Layer

The physical layer uses joins and unions.

Characteristics:

Tables are merged into a single physical structure
Behavior is fixed
Row duplication risk is higher
Useful when exact row-level structure is required

`Relationships` vs `Joins` vs `Unions` vs `Blending`

Befor jumping detailed comparison, let’s wathch the this video

Relationships

Relationships connect tables logically rather than physically.

Use relationships when:

Queries are done based on the view
Fact and dimension tables should remain separate
One-to-many or many-to-many structures exist

Benefits:

More flexible querying
Lower duplication risk
Better default behavior for analytics

Steps to Create Relationships (Based on Example)

Open the Data Source page
Drag orders.csv to the canvas
Drag order_details.csv next to it
Tableau creates a relationship line between tables
Click on the relationship line
Set condition: Order ID = OrderID (order_details)
Validate that no duplication appears in aggregated view

Joins

Joins combine tables horizontally using matching keys. As we can see it is quite similar to relationships but it is a physical combination of tables.

The same as SQL JOIN and pd.merge() in Python

Common join types:

Inner Join: returns only records that have matching keys in both tables, excluding any rows that do not exist on both sides.
Left Join: keeps all records from the left table and adds matching data from the right table, inserting NULL values when no match exists.
Right Join: keeps all records from the right table and adds matching data from the left table, inserting NULL values when no match exists.
Full Outer Join: keeps all records from both tables, returning matched rows where possible and NULL values where matches are missing.

Use joins when:

You need a fixed row-level structure
Tables share a clear grain

Risks:

Dupl icated rows if grains do not match
Inflated aggregations

Steps to Create Joins (Based on Example)

Double-click orders.csv to enter physical layer
Drag order_details.csv into the canvas
Choose Left Join
Set join condition: Order ID = OrderID
Review preview → notice duplicated rows due to multiple order lines
Validate aggregation issues using SUM(Order Total)

Unions

Unions stack tables vertically.

Use unions when:

Tables have the same structure
Files are split by month, year, or source

Rules:

Columns should align by name and type
Missing columns create NULLs

Manual Union Steps

Drag orders_2023_Q1.csv to canvas
Drag orders_2023_Q2.csv below it
Repeat for all quarterly files
Tableau creates a union step-by-step
Click the union object to review included tables
Validate column consistency and data types

Wildcard Union Steps

Drag one file (e.g., orders_2023_Q1.csv) to canvas
Click the dropdown → choose New Union
Select Wildcard (automatic)
Define pattern: orders_*.csv
Tableau automatically includes all matching files
Validate that all expected files are included
Check for schema consistency across files

Blending

Blending combines multiple data sources at the visualization level.

Characteristics:

One primary source
One or more secondary sources
Aggregation happens before linking

Use blending when:

Multiple independent data sources must appear in one view
A direct relational model is not available

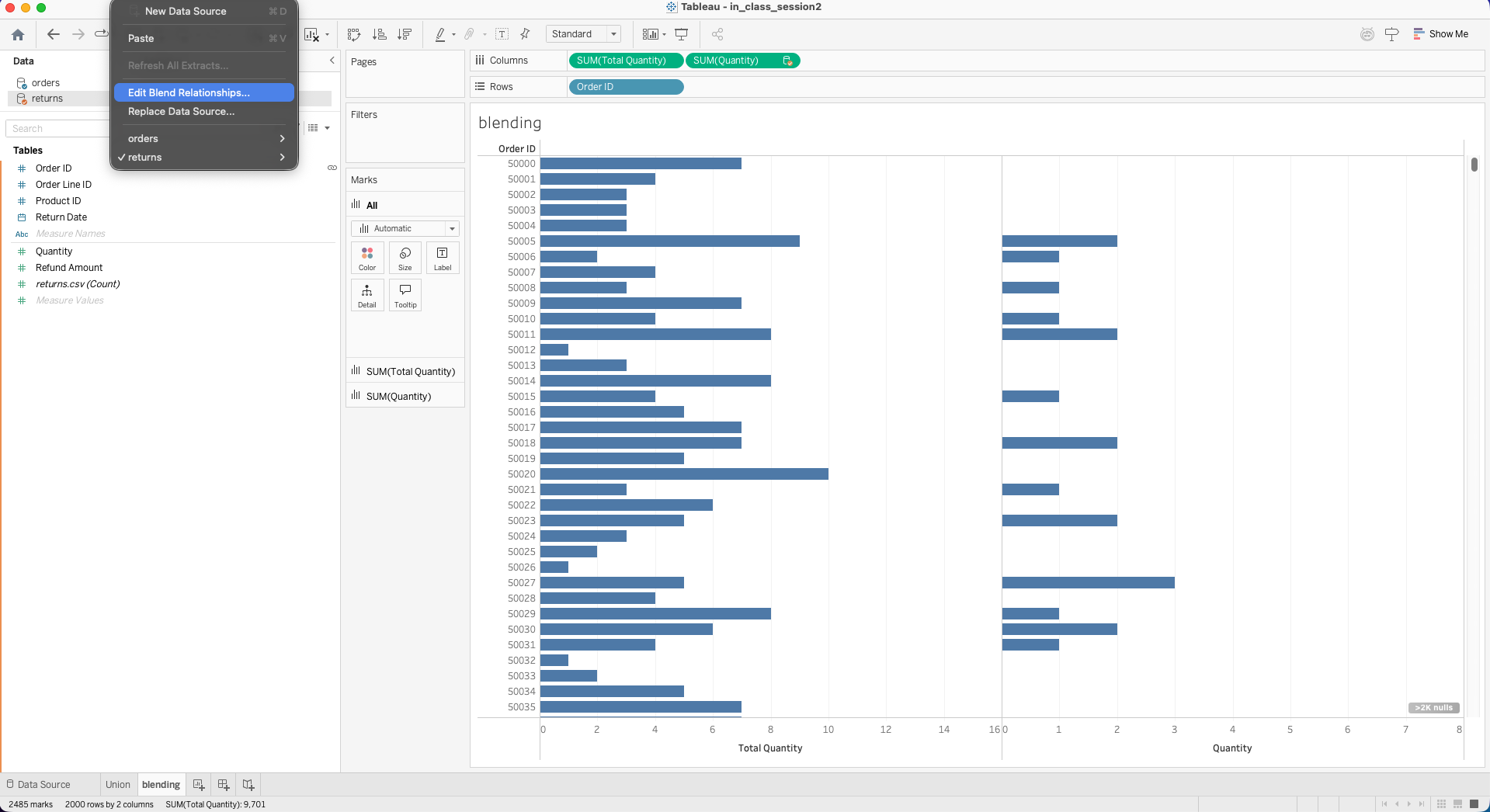

Steps to Create Blending (Based on Example)

Connect to orders.csv as primary source
Add returns.csv as secondary source
Open a worksheet
Drag Order ID from primary
Drag Order ID from secondary
Ensure linking icon appears
Observe NULL values where no match exists

Comparison Summary

Method	Layer	Adds Rows	Adds Columns	Multiple Sources
Relationship	Logical	No	No	No
Join	Physical	No	Yes	No
Union	Physical	Yes	No	No
Blend	Visualization level	No	No	Yes

Relationship Join

Note: When using joins, the same row may appear multiple times.
This can inflate aggregated values such as SUM([Order Total]).

Final Data Model

The final data model is built using relationships in the logical layer, not joins.

The central table in this model is orders.csv, which acts as the fact table. All other tables are connected to it or through it using appropriate keys.

This structure allows Tableau to dynamically determine how tables should be combined based on the visualization.

Why Relationships Are Used

Relationships are preferred in this model because the dataset contains tables with different levels of granularity.

For example:

orders.csv contains one row per order
order_details.csv contains multiple rows per order (one row per product in the order)

If these tables were joined directly:

Each order would be duplicated for every product line
Measures such as Order Total would be repeated
Aggregations like SUM(Order Total) would become incorrect

Relationships solve this problem by:

Keeping tables logically separate
Aggregating data at the correct level before combining
Preventing duplication and inflated results

How Tables Are Connected

The relationships in the final model are defined as follows:

orders.csv ↔︎ customers.csv ON Customer ID = Customer ID
customers.csv ↔︎ customer_addresses.csv ON Customer ID = Customer ID
orders.csv ↔︎ order_details.csv ON Order ID = Order ID
order_details.csv ↔︎ products.csv ON Product ID = Product ID
orders.csv ↔︎ returns.csv ON Order ID = Order ID
orders.csv ↔︎ salespeople.csv ON Salesperson ID = Salesperson ID

Important Behavior of Relationships

Unlike joins, relationships do not merge tables into a single dataset.

Instead:

Tableau queries each table separately
Combines results only when needed for the visualization
Adapts aggregation depending on the fields used in the view

flowchart LR
A[Orders - Fact Table] --> B[Customers]
A --> C[Order Details]
C --> D[Products]
A --> E[Returns]
A --> F[Salespeople]
B --> G[Customer Addresses]

Filters and Order of Operations

Tableau applies filters in a specific sequence. This order affects both performance and results.

The simplified order discussed in this session is:

Extract Filters
Data Source Filters
Context Filters
Dimension Filters
Measure Filters

Table calculations are applied later and depend on the visible data.

flowchart TD
A[Extract Filters] --> B[Data Source Filters]
B --> C[Context Filters]
C --> D[Dimension Filters]
D --> E[Measure Filters]
E --> F[Table Calculations]
F --> G[Rendered View]

Extract Filters

Extract filters limit data before it is stored in Tableau.

Use them to:

Reduce volume
Improve performance
Restrict historical scope

Steps:

Go to Data Source tab
Click Extract → Edit
Under Filters click Add
Select a field (e.g. State)
Choose values or exclude values
Click OK and refresh extract

Types:

Dimension-based (e.g. State, City)
Measure-based (aggregated filtering before extract)
Date-based (relative or range filtering)

Data Source Filters

Data source filters restrict the data available to all sheets using that data source.

Use them when:

A published source must be globally restricted
Sensitive or irrelevant data should be hidden

Steps:

Go to Data Source tab
Click Filters (top right)
Click Add
Select a field (e.g. City)
Define filter logic (include/exclude values)
Click OK

Types:

Dimension filters (categorical restriction)
Measure filters (aggregated restriction)
Extract filters (applied at extract level but part of data source setup)

Context Filters

Context filters create the primary subset used by later filters.

Use them when:

You need dependent filters
You want a FIXED LOD to respect a filter
You want performance improvements in some complex cases

Steps:

Add a filter to Filters shelf
Right-click the filter
Select Add to Context
Filter turns grey (context applied)

Dimension Filters

Dimension filters limit categorical values such as:

Region
Category
Customer name

Steps:

Drag a dimension (e.g. State) to Filters shelf
Choose filter type:
- General (select values)
- Wildcard (pattern match)
- Condition (formula-based)
- Top (ranking)
Select or exclude values
Click OK

Filter modes (from screenshot):

Select from list
Custom value list
Use all
Include / Exclude

Measure Filters

Measure filters limit aggregated numeric values such as:

SUM([Sales])
AVG([Discount])
COUNTD([Customer ID])

Steps:

Drag a measure to Filters shelf
Choose aggregation (SUM, AVG, COUNTD etc.)
Select filter type

Types:

Range of values (min–max slider)
At least (greater than or equal)
At most (less than or equal)
Special (null/non-null handling)

Date Filters

Date filters allow time-based slicing such as:

Last quarter
Between two dates
Relative periods

Steps:

Drag date field to Filters shelf
Choose filter type

Types:

Relative date (e.g. last 1 quarter)
Range of dates
Starting date
Ending date
Discrete date parts (year, month, quarter)

Top N Filters

Top N filters allow ranking by a chosen measure.

Example use cases:

Top 10 customers by revenue
Bottom 5 products by quantity

Steps:

Drag dimension (e.g. Customer ID) to Filters shelf
Go to Top tab
Select By field
Define Top N (e.g. Top 10 by COUNT(Order ID))
Click OK

Interactive Filters

Interactive filters allow dashboard users to control the visible data.

Common UI forms include:

Single value dropdown
Multiple values list
Slider
Wildcard match

Steps:

Right-click a filter on Filters shelf
Click Show Filter
Choose display type:
- Single value (list/dropdown/slider)
- Multiple values (list/dropdown/custom list)
- Wildcard match

Advanced Chart Types

This session covers several advanced chart types commonly used in analytical dashboards.

Charts include:

Area chart
Stacked bar chart
Bullet chart
Bar-in-bar chart
Box plot
Dual-axis chart
Histogram
Heatmap
Highlight table
Treemap

Area Chart

An area chart shows trends over time while emphasizing cumulative magnitude and contribution.

Steps to Create

Drag Order Date to Columns and set it to Month
Drag Customer ID to Rows and change it to Count (Distinct)
Change Marks type to Area
Drag City to Color

Use an area chart when:

Time is the primary axis
Category contribution matters
Trend magnitude should be emphasized

Stacked Bar Chart

A stacked bar chart shows total size and internal composition at the same time.

Steps to Create

Drag Order Date to Columns and set it to Year
Drag Measure Values to Rows
Drag Measure Names to Color
Filter Measure Names to keep only relevant measures
Set the marks type to Bar
Drag Measure Values to Label (hold Ctrl).
Adjust colors and bar size.

Use a stacked bar chart when:

You need part-to-whole comparison
Total values must remain visible
Category composition is important

Bullet Chart

A bullet chart compares actual performance against one or more benchmarks while conserving space.

Typical usage includes:

Actual vs target
Category value vs average benchmark
Performance band analysis

Steps to Create

Drag Category to the Rows shelf.
Drag SUM([Total Quantity]) to the Columns shelf.
Open Show Me and select Bullet Graph.
Tableau automatically:
- Creates the bullet bar
- Adds a reference line based on aggregation
Right-click the axis → Add Reference Line
Set the reference line to:
- Scope: Entire Table
- Value: Average of SUM([Total Quantity])
Add additional reference lines or bands using: Percent of average (e.g. 60%, 80%, 100%)
Adjust:
- Bar color (actual values)
- Band opacity (performance ranges)
- Tooltip text for clarity

In this example:

Blue bars represent the actual total quantity per Category
Background bands represent performance ranges based on the overall average
Vertical reference lines indicate benchmark values (e.g. average or percentage of average)

This allows quick identification of:

Categories performing below average
Categories performing near or above benchmark (e.g. 60% of Average Total Quantity = 2,874, as shown in the tooltip)
Relative performance without comparing categories directly

Use a bullet chart when:

You need compact benchmark comparison
Dashboards have limited space
Performance against a target matters

`Bar-In-Bar` Chart

A bar-in-bar chart compares two related measures for the same dimension.

Method 1: Shared Axis

Use when:

Measures are on a similar scale
One measure is conceptually part of the other

Method 2: Separate Axes

Use when:

Measures differ significantly in size
Visibility is more important than strict proportionality

Bar In Bar Chart:Method 2 (Separate Axis)

Box Plot

A box plot shows the distribution of a measure, including spread, center, and outliers.

Box Plot Components

For each category, a box plot reveals:

Median
Interquartile range
Whiskers
Outliers

Steps to Create

Drag MONTH([Order Date]) to the Columns shelf.
Drag SUM([Order Total]) to the Rows shelf (this creates the bar chart).
Drag SUM([Order Total]) to the Rows shelf a second time.
On the second measure:
- Change Marks type to Line
- Apply a table calculation (e.g. Moving Sum or Running Total)
Right-click the second axis and select Dual Axis.
Synchronize axes if necessary and adjust colors.

Use a box plot when:

Variability matters more than totals
You need to detect outliers
Category-level distributions should be compared

Dual-Axis Chart

A dual-axis chart overlays two measures in a single view.

Used when you want to compare two related measures that have different scales or when you want to show a relationship between them.

Bars for monthly sales
Line for running total or moving average

Steps to Create

Drag MONTH([Order Date]) to the Columns shelf.
Drag SUM([Order Total]) to the Rows shelf (this creates the bar chart).
Drag SUM([Order Total]) to the Rows shelf a second time.
On the second measure:
- Change Marks type to Line
- Apply a table calculation (e.g. Moving Sum or Running Total)
Right-click the second axis and select Dual Axis.
Synchronize axes if necessary and adjust colors.

Histogram

A histogram analyzes the distribution of a continuous numeric variable.

Steps to Create:

Right-click Order Total → Create → Bins
Choose an appropriate bin size (based on data range and analysis goal)
Drag Order Total (bin) to the Columns shelf
Drag COUNT([Order Total]) to the Rows shelf
Set Marks type to Bar

A histogram helps answer:

Where most values cluster
Whether the distribution is symmetric or skewed
Whether extreme values exist

Use a histogram when:

Distribution shape matters
Numeric ranges matter more than categories
Outliers or skewness should be detected

Heatmap

A heatmap compares magnitude across two categorical dimensions using color intensity.

Steps to Create:

Drag City to the Rows shelf.
Drag YEAR([Order Date]) to the Columns shelf.
Drag SUM([Order Total]) to Color on the Marks card.
Set Marks type to Square (or Automatic).
Adjust the color palette to:
- Light colors → lower values
- Dark colors → higher values

Use a heatmap when:

Pattern discovery matters
You need fast comparison across a matrix
Magnitude can be encoded visually

Highlight Table

A highlight table combines a table structure with color encoding so that users can see both exact values and relative intensity.

Steps to Create

Drag City to the Rows shelf.
Drag YEAR([Order Date]) to the Columns shelf.
Drag SUM([Order Total]) to Color on the Marks card.
Drag SUM([Order Total]) to Label on the Marks card.
Set Marks type to Square.
Adjust the color palette to reflect low → high values.

Highlight Table vs Heatmap

Feature	Highlight Table	Heatmap
Exact values visible	Yes	No
Pattern emphasis	Yes	Yes
Precision	High	Lower

Use a highlight table when:

Exact values matter
Color should support quick comparison
The view functions as both report and analysis

Treemap

A treemap shows part-to-whole relationships across many categories using area and color.

Steps to Create

Drag State to Label (or first level in hierarchy).
Drag City to Label (nested under State).
Drag COUNTD([Customer ID]) to Size.
Drag COUNTD([Customer ID]) to Color.
Set Marks type to Treemap.
Drag COUNTD([Customer ID]) to Label, right-click choose quick table qalqulations → percent of total.

Treemap Use a treemap when:

There are many categories
Relative contribution matters
Exact comparison is not the primary goal

Calculated Fields

Calculated fields allow you to create new logic from existing data.

They are one of Tableau’s most important analytical features.

Calculated fields can be used to:

Create new metrics
Transform data
Segment records
Build KPI logic
Control dashboard behavior

Creating a Calculated Field

Go to Analysis → Create Calculated Field
Enter a name
Write the formula
Validate and save

Row-Level Calculations

Row-levelcalculations operate on each individual record before aggregation.

Use row-level calculations when you need to:

Create line-level revenue
Standardize raw fields
Build record-level flags
Classify rows

Example 1: Order Line Revenue

[Quantity] * [Unit Price]

Each row calculates its own revenue value.

Example 2: Revenue Banding

IF [Quantity] * [Unit Price] >= 1000 THEN "High Value"
ELSE "Standard"
END

This formula classifies each order line as “High Value” or “Standard” based on its revenue.

Aggregate Calculations

Aggregate calculations operate after Tableau groups data according to the dimensions in the view.

Common aggregate functions include:

SUM()
AVG()
COUNT()
COUNTD()
MIN()
MAX()

As you can see everything is similar to SQL aggregate functions.

Example: Average Order Value

SUM([Order Total]) / COUNTD([Order ID])

This formula returns average revenue per order at the current level of aggregation.

Important

Tableau does not allow incorrect mixing of row-level and aggregate fields in the same expression. For example, this is invalid:

SUM([Sales]) / [ORDER ID]

A corrected version would aggregate both sides:

SUM([Sales]) / COUNT([ORDER ID])

`LOD` Expressions

Level of Detail LOD expressions explicitly control the granularity of a calculation independently of the view.

There are three main types:

FIXED
INCLUDE
EXCLUDE

Important

LOD expressions are essential for building consistent KPIs, customer-level metrics, cohort logic, and benchmark calculations.

It is very Similar to WINDOW functions in SQL but with more flexibility and control over the level of aggregation.

flowchart TD
A[View Level of Detail] --> B[Default Aggregation]
B --> C[LOD Expression]
C --> D[FIXED]
C --> E[INCLUDE]
C --> F[EXCLUDE]

FIXED

FIXED calculates at a specified level regardless of view dimensions.

Example 1: Customer Lifetime Value

{ FIXED [Customer ID] : SUM([Order Total]) }

Use FIXED when:

A metric must remain stable across sheets
A KPI should be defined at a business entity level
The calculation should ignore most view-level dimensional changes

Example 2: Minimum Order Date per Customer aka Starting Cohort

{ FIXED [Customer ID] : MIN([Order Date]) }

This calculation returns the first purchase date for each customer.

SQL Comparison

-- LOD equivalent in SQL
SELECT
  CustomerID,
  SUM(OrderTotal) AS LifetimeValue,
  MIN(OrderDate) AS FirstPurchaseDate
FROM Orders
GROUP BY CustomerID

INCLUDE

INCLUDE adds detail to the calculation level even if that dimension is not in the view.

Example:

{ INCLUDE [Region] : AVG([Order Total]) }

Use INCLUDE when:

Extra detail should influence the result
The view is less granular than the analytical logic

EXCLUDE

EXCLUDE removes a dimension from the calculation level even if it appears in the view.

Example:

{ EXCLUDE [Region] : AVG([Order Total]) }

Use EXCLUDE when:

A dimension is needed visually
But should not affect the aggregation logic

Even if Region appears in the view, this calculation computes the average as if the Region dimension did not exist.

Comparison Example

AVG([Order Total]) \(\rightarrow\) Calculates average sales per Region and Year
{ INCLUDE [Region] : AVG([Order Total]) } \(\rightarrow\) Calculates average sales per Region, then aggregates to Year
{ EXCLUDE [Region] : AVG([Order Total]) } \(\rightarrow\) Calculates average sales per Year ignoring Region
{ FIXED [Region] : AVG([Order Total]) } \(\rightarrow\) Calculates average sales per Region regardless of Year

Important

LOD expressions are essential for building consistent:

KPIs
customer-level metrics
cohort logic
benchmark calculations

Tableau Functions

Tableau provides many built-in functions that can be used in calculated fields.

Main categories include:

Aggregate functions
Number functions
String functions
Logical functions
Type conversion functions

Similar to SQL functions and Python functions, but with Tableau-specific behavior and syntax.

Aggregate Functions

Aggregate functions perform calculations on multiple rows and return a single value.

Examples:

SUM([Order Total]) \(\rightarrow\) total revenue from orders dataset
AVG([Unit Price]) \(\rightarrow\) average product price from products.csv
COUNT([Order ID]) \(\rightarrow\) total number of orders
COUNTD([Customer ID]) \(\rightarrow\) number of unique customers

Number Functions

Number functions perform mathematical operations on numeric fields.

Examples:

ROUND([Order Total], 2) \(\rightarrow\) rounds order value to 2 decimal places
ABS([Discount]) \(\rightarrow\) removes negative sign from discount values
CEILING([Unit Price]) \(\rightarrow\) rounds price up to nearest integer
FLOOR([Unit Price]) \(\rightarrow\) rounds price down

String Functions

String functions manipulate text fields.

Examples:

UPPER([Customer Name]) \(\rightarrow\) converts names to uppercase
LOWER([City]) \(\rightarrow\) converts city names to lowercase
LEFT([Product ID], 3) \(\rightarrow\) extracts first 3 characters of product ID
TRIM([Customer Name]) \(\rightarrow\) removes extra spaces

Logical Functions

Logical functions apply conditional logic to create categories or flags.

Logical functions include:

IF statements
CASE statements

Use case with dataset:

Segment orders based on value

IF [Order Total] >= 500 THEN "Large Order"
ELSE "Small Order"
END

Categorize products

CASE [Category]
WHEN "Beauty" THEN "Personal Care"
WHEN "Clothing" THEN "Apparel"
ELSE "Other"
END

Type Conversion Functions

Type conversion functions change data types between string, number, and date.

STR([Customer ID]) \(\rightarrow\) convert numeric ID to text
INT([Unit Price]) \(\rightarrow\) convert price to integer
DATE([Order Date]) \(\rightarrow\) ensure field is treated as date
FLOAT([Discount]) \(\rightarrow\) convert value to decimal

Date functions and spatial functions will be explored in the next session.

Parameters

A parameter is a workbook variable that can store a value chosen by the user. Thanks to the parameter, users can interact with the view and control calculations, filters, reference lines, and more.

Basically parameters are dynamic values that can be used to make your dashboards interactive and customizable for end-users.

Key Characteristics:

Do not filter data automatically
Must be referenced in logic
Do not follow filter order of operations
Can store numbers, strings, dates, or booleans

flowchart LR
A[Parameter Value] --> B[Calculated Field]
B --> C[View Logic]
C --> D[Displayed Result]

In order to use a parameter, we need

Create the parameter
Use it in a calculated field, filter, or reference line
Show the parameter control to the user

Steps to create a parameter

In the Data pane, click the dropdown menu
Select Create Parameter…
Configure:
- Name
- Data type
- Allowable values (List / Range / All)
Click OK
Right-click the parameter → Show Parameter

Metric Switching

A parameter can let users switch between metrics.

Example parameter-driven calculation:

CASE [Metric]
WHEN 1 THEN SUM([Revenue])
WHEN 2 THEN SUM([Quantity])
ELSE SUM([Profit])
END

Create parameter:

Name: Metric
Data type: Integer
Values:
- 1 → Revenue
- 2 → Quantity

Create calculated field: p. Metric

CASE [Metric]
WHEN 1 THEN SUM([Revenue])
ELSE SUM([Quantity])
END

Applying the Parameter:

Drag the calculated field into the view
Right-click parameter → Show Parameter
Use dropdown to switch metrics

Important

Name of the calculated field should be identical to the parameter name and can include p. in the name to make it clear that it is a calculation for the parameter.

Dimension Switching

A parameter can switch dimensions in the view.

CASE [Location Category]
WHEN '1' THEN [State]
ELSE [City]
END

Create parameter: p.location category

Name: Location Category
Data type: String
Values: State, City

Create calculated field: Location Category

CASE [Location Category]
WHEN 'State' THEN [State]
ELSE [City]
END

Applying the Parameter:

Drag calculated field to Rows or Columns
Show parameter
Switch between State and City

Boolean Parameter Logic

A boolean-style parameter can toggle analysis behavior.

Create parameter:

Name: Is Florida
Data type: Boolean

Create calculated field: p. Is Florida

IF [Is Florida] THEN
    [State] = 'FL'
ELSE
    [State] <> 'FL'
END

Drag calculation to Filters
Select True
Show parameter to toggle

Top `N` with Parameter

A numeric parameter can drive Top N analysis.

Common workflow:

Create parameter Top Values
Use it in a Top tab filter
Let the user choose how many values to show

Create parameter:

Name: Top values
Data type: Integer

Apply the parameter in a filter:

Drag dimension (Customer Name) to Filters
Go to Top tab
Select:
- By field
- Top [Top values] by SUM(Revenue)
Show parameter

Date Parameter Logic

Parameters can also support date-based filtering.

Create parameter:

Name: Select Return Date
Data type: Date
Add values from Return Date

Create calculated field:

name: p. Select Return Date
[Order Date] <= [Select Return Date]
Drag calculation to Filters
Keep True
Show parameter

Tip

You can set the default value of the date parameter to a dynamic value such as:

TODAY()
MAX([ORDER DATE])

Set When workbook opens → MAX(Order Date) to always show the latest data.

Naming Conventions

As you have seen in the examples, we recommend using a clear naming convention for calculated fields that reference parameters. It is best practice to include the parameter name in the calculated field name to make it clear that the calculation is driven by that parameter. This helps with organization and makes it easier for other users to understand the purpose of the calculated field.

Important

Recommended convention: p. <Parameter Name>

`Filters` vs `Parameters` vs `Calculated Fields`

Understanding how filters and parameters affect calculations is essential for correct results.

Dimension Filters

Dimension filters are applied after FIXED LOD expressions but before table calculations.

Thus:

They do not affect FIXED by default
They do affect INCLUDE and EXCLUDE
They affect table calculations because they change the visible data

Example:

{ FIXED [Customer ID] : SUM([Sales]) }

If you add a regular dimension filter on [Region], the FIXED result does not automatically change.

Try it out!

Try adding [Region] as a filter and see how the FIXED calculation behaves. It will still compute the total sales per customer across all regions, regardless of the region filter applied.

Measure Filters

Measure filters are applied after aggregation.

They affect:

Aggregated results
Visible marks
Table calculations

They do not recompute FIXED LOD expressions.

Context Filters

Context filters change the evaluation path by creating a subset earlier in the pipeline.

Thus:

Context filters do affect FIXED
They can improve performance in some cases
They support dependent filters

Example:

{ FIXED [Customer ID] : SUM([Sales]) }

If [Region] is placed in context, the calculation is now evaluated only for the selected region.

Table Calculations

Table calculations are applied after most filters and depend on the displayed marks.

They are influenced by:

Sorting
Layout
Partitioning
Addressing
Visible data

flowchart TD
A[Source Data] --> B[LOD and Aggregations]
B --> C[Filters]
C --> D[Visible Marks]
D --> E[Table Calculations]

Note

Parameters change logic only when they are explicitly referenced. Filters change the actual subset of data being evaluated.

Homework

Using the retail dataset, complete the following:

Model the data using relationships:
- Orders ↔︎ Customers
- Orders ↔︎ Order Details
- Order Details ↔︎ Products
Create three calculated fields:
- Discount Impact: [Unit Price] * [Discount]
- High Value Order: IF [Order Total] >= 1000 THEN "High" ELSE "Standard" END
- Full Name: [First Name] + " " + [Last Name]
Create one LOD expression:
- Average Order Value per City: { FIXED [City] : AVG([Order Total]) }
Add three filters:
- Product Category filter (Dimension filter)
- Order Date filter (Relative date → last 2 years)
- City as a Context filter
Create two parameters:
- Dimension switch (State / City)
- Top N Products by SUM(Quantity)
Create four charts:
- Area chart → Orders over time by Category
- Bar chart → Top products by Quantity
- Highlight table → City vs Category by Order Total
- Scatter plot → Discount vs Order Total
Build a dashboard: combine all charts with parameter controls and filters
Publish to Tableau Public and submit your public link

Deliverable: A published Tableau Public dashboard link.

Resources

GitHub

Tableau Course Code Repository for this session is available in the GitHub repository linked above. It includes:

Tableau workbook with all examples
Sample datasets

Learning Goals

Overview

From Flat Tables to Analytical Models

Datasets Used in This Session

Dowloading the Datasets Part 1

Dowloading the Datasets Part 2

Connection Types

Live Connection

Extract Connection

Creating Extracts

Extract Properties

Logical Tables

Physical Tables

Extract Filters

Aggregate Data for Visible Dimensions

Choose the Rows to Extract

Incremental Refresh

Date/Time Precision Consideration

Tableau Data Model

Logical Layer

Physical Layer

Relationships vs Joins vs Unions vs Blending

Relationships

Joins

Unions

Manual Union Steps

Wildcard Union Steps

Blending

Comparison Summary

Final Data Model

Why Relationships Are Used

How Tables Are Connected

Filters and Order of Operations

Extract Filters

Data Source Filters

Context Filters

Dimension Filters

Measure Filters

Date Filters

Top N Filters

Interactive Filters

Advanced Chart Types

Area Chart

Stacked Bar Chart

Bullet Chart

Bar-In-Bar Chart

Method 1: Shared Axis

Method 2: Separate Axes

Box Plot

Dual-Axis Chart

Histogram

Heatmap

Highlight Table

Highlight Table vs Heatmap

Treemap

Calculated Fields

Creating a Calculated Field

Row-Level Calculations

Example 1: Order Line Revenue

Example 2: Revenue Banding

Aggregate Calculations

Example: Average Order Value

LOD Expressions

FIXED

INCLUDE

EXCLUDE

Comparison Example

Tableau Functions

Aggregate Functions

Number Functions

String Functions

Logical Functions

Segment orders based on value

Categorize products

Type Conversion Functions

Parameters

Steps to create a parameter

Metric Switching

Dimension Switching

Boolean Parameter Logic

`Relationships` vs `Joins` vs `Unions` vs `Blending`

`Bar-In-Bar` Chart

`LOD` Expressions

Top `N` with Parameter

`Filters` vs `Parameters` vs `Calculated Fields`
