Intro to Relational Databases

Data Analysis With SQL

Karen Hovhannisyan

2026-04-01

Learning Goals

  • Understand what a database is and why it is essential for analytics
  • Distinguish between relational and non-relational databases
  • Understand the role of OLAP systems and RDBMS in analytics workflows
  • Explain differences between Data Warehouse, Data Mart, Data Lake, and Data Lakehouse
  • Build and run a local PostgreSQL database using Docker

Where SQL Fits in Data Analytics

SQL sits at the core of the analytics stack

  • Used to interact with:
    • operational databases
    • data warehouses
    • data lakes and lakehouses
  • Almost every analytics tool relies on SQL:
    • BI tools (Tableau, Power BI)
    • Machine learning feature pipelines
    • Python/R analytics workflows
  • Mastering SQL enables you to:
    • ask better questions
    • access data independently
    • scale your analytical work

What Is a Database?

  • A database is a structured collection of data stored electronically

  • Data is organized into:

    • tables
    • rows
    • columns

  • A database is managed by a Database Management System (DBMS)

  • The DBMS is responsible for:

    • storing data
    • retrieving data efficiently
    • enforcing rules and constraints
    • supporting multiple users concurrently

Why Databases Are Not Excel

  • Spreadsheets are designed for individual, ad-hoc analysis
  • Databases are designed for shared, institutional data use
  • Key limitations of spreadsheets:
    • entire dataset loaded into memory
    • poor performance at scale
    • weak support for concurrent users
  • Databases provide:
    • efficient data access
    • concurrency control
    • reliability and consistency at scale

Types of Data

In analytics, data is categorized by how it is structured

  • The structure determines:
    • how data is stored
    • how it is queried
    • which tools can process it efficiently
  • Three major categories:
    • structured data
    • unstructured data
    • semi-structured data

Databases and analytics systems are designed differently for each type

Types of Data: Visual Overview

ID Name City 1 Maria Oslo 2 Nick Berlin
photos, chats, mp3…
<user id=“1001”> “name”: “Maria” “roles”: [“admin”]

Types of Databases

Types of Databases

  • Relational Databases
    • Table-based, fixed schema
    • Queried using SQL
  • NoSQL Databases
    • Flexible schema
    • Designed for scalability and distributed systems
  • Graph Databases
    • Nodes and relationships
    • Optimized for connected data

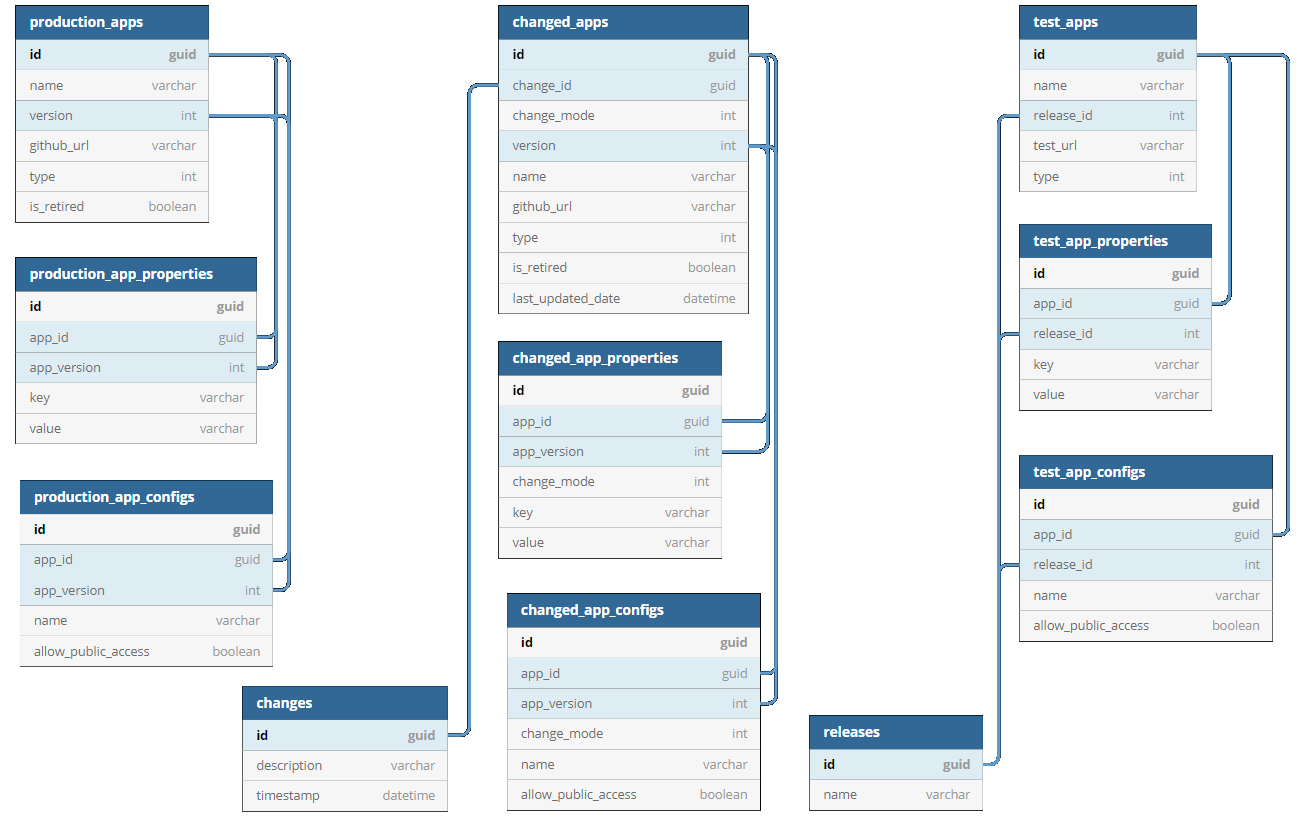

Relational Databases

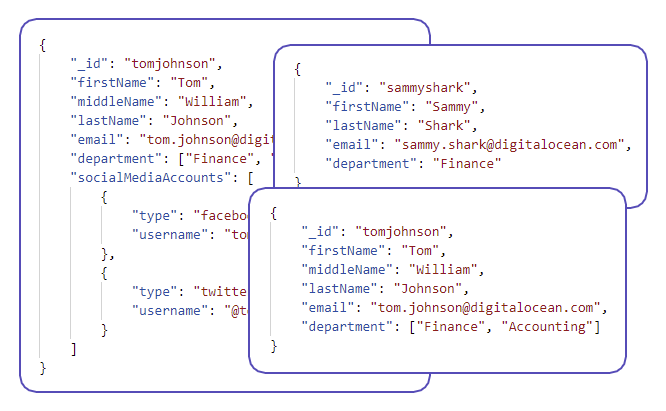

NoSQL Databases

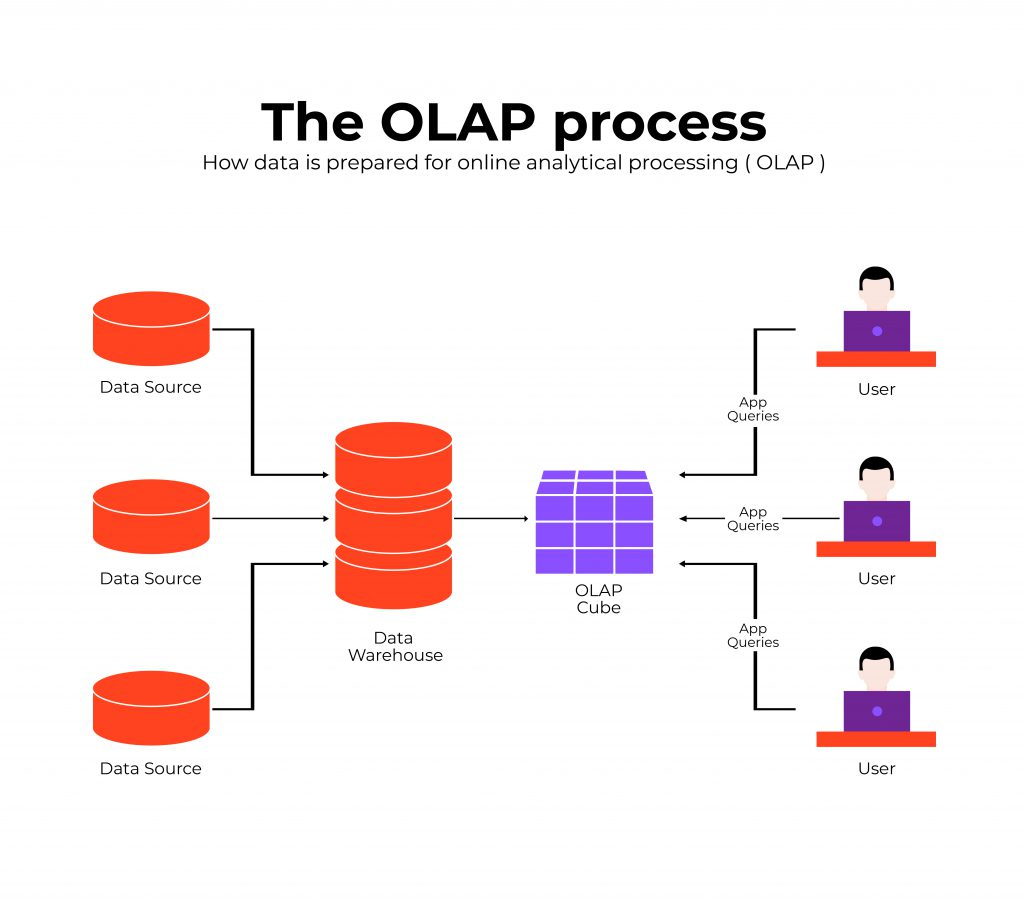

OLAP Systems

  • Optimized for analytics and reporting
  • Read-heavy workloads
  • Large historical datasets
  • Complex queries and aggregations

Graph Databases

OLTP Systems

  • Optimized for real-time transactions
  • Write-heavy workloads
  • Many small, fast operations
  • Strong consistency (ACID)

ACID Transactions

  • Atomicity: all operations succeed or none do
  • Consistency: database moves from one valid state to another
  • Isolation: concurrent transactions do not interfere
  • Durability: committed data is not lost

BASE Systems

  • Basically Available

  • Soft state

  • Eventually consistent

  • Used mainly in distributed NoSQL systems

  • Favors availability over immediate consistency

  • Temporary inconsistencies are acceptable

  • Data becomes consistent eventually

The CAP Theorem

  • Applies to distributed systems
  • A system cannot guarantee all three at the same time:
    • Consistency
    • Availability
    • Partition Tolerance
  • During a network partition: the system must choose between Consistency and Availability
  • Explains trade-offs in large-scale distributed databases

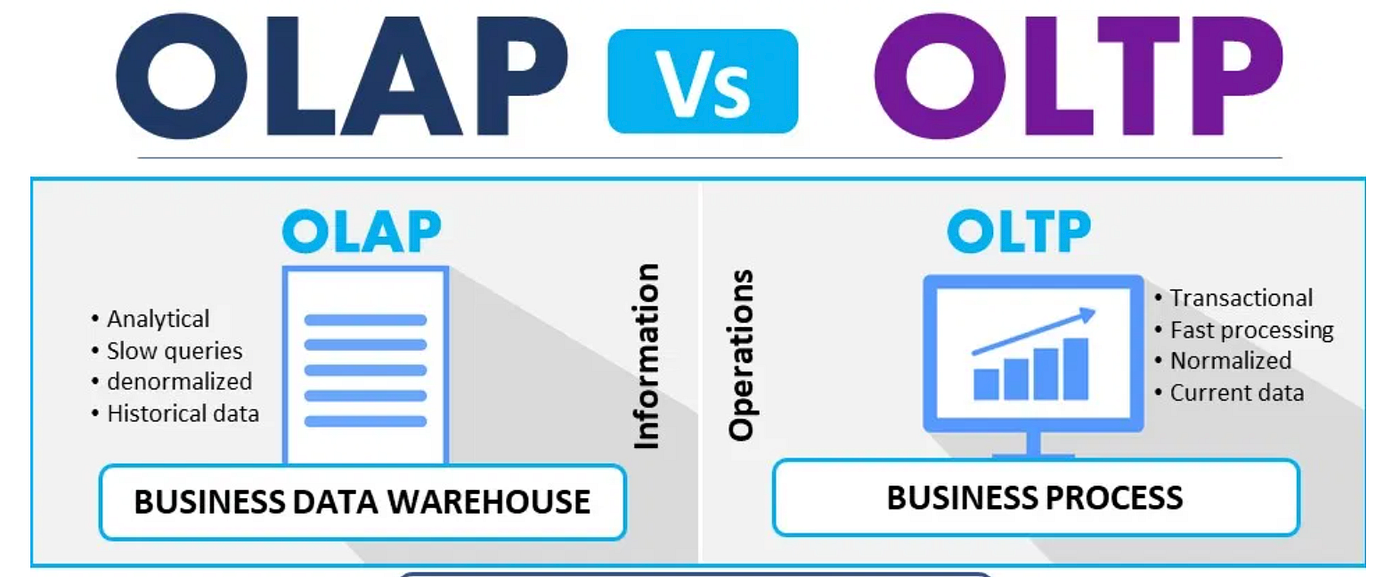

OLAP vs OLTP Summary

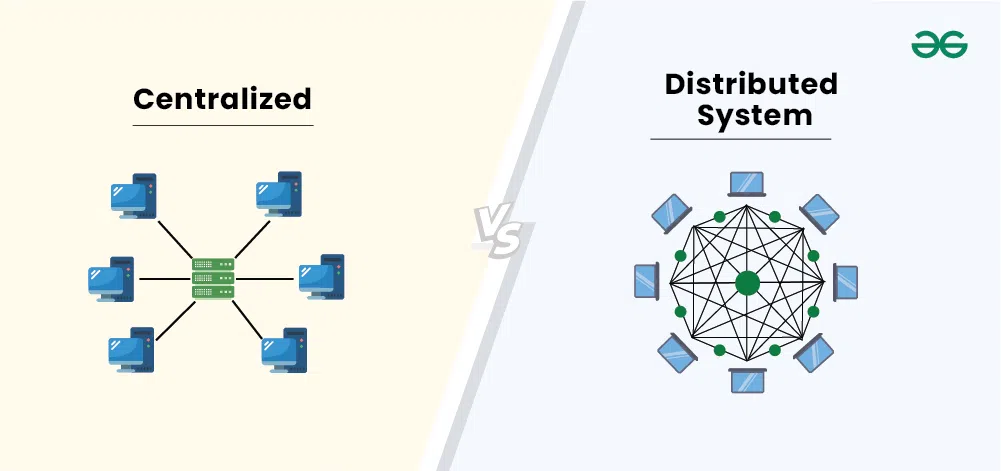

Centralized Databases

Distributed Databases

Data Management Architectures

Data Management Architectures

  • Data Warehouse (DW)
  • Data Mart (DM)
  • Data Lake (DL)
  • Data Lakehouse (DLH)

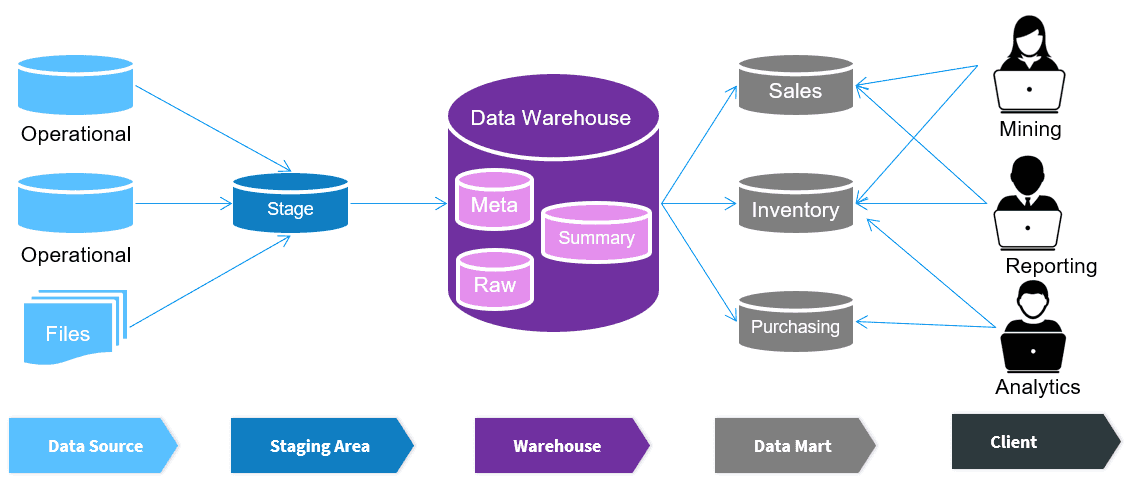

Data Warehouse (DW)

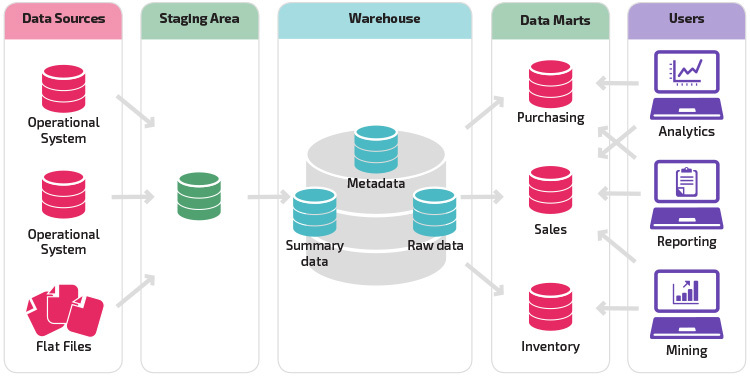

Data Mart (DM)

Data Lake (DL)

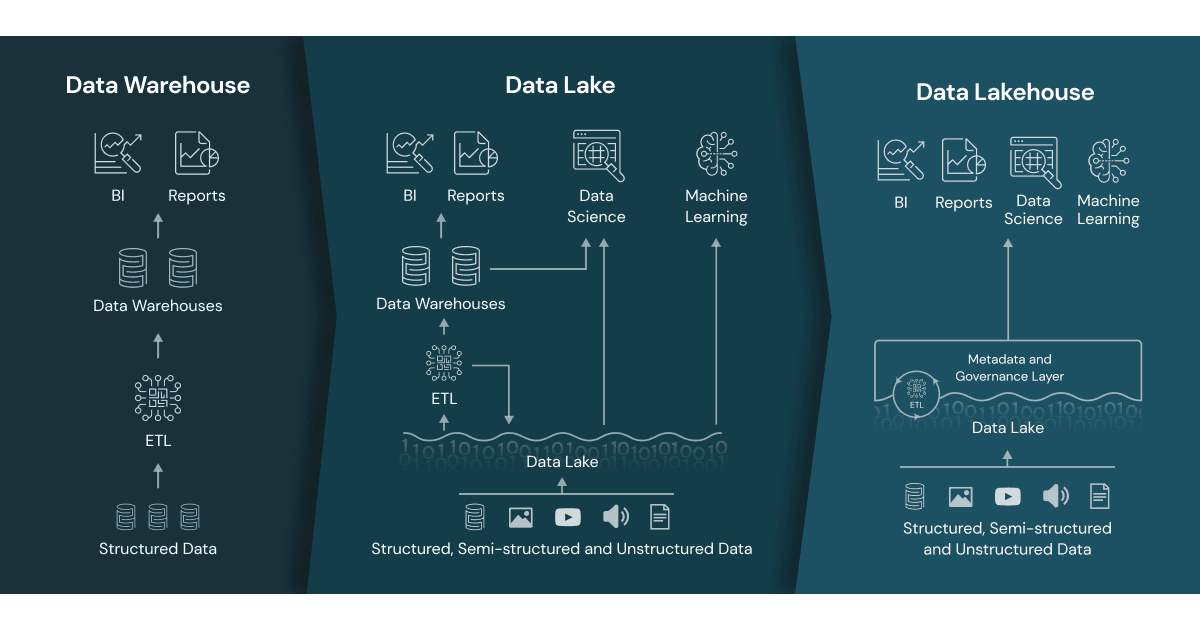

Data Lakehouse (DLH)

Data Management Architectures — Summary

  • DW: governed, structured, BI-focused
  • DM: domain-specific slice of DW
  • DL: raw, flexible, ML-oriented storage
  • DLH: unified DW + DL with ACID guarantees

Intro to SQL

Intro to SQL

  • SQL (Structured Query Language)

    • Developed by IBM (1970s)
    • Public release: 1979
    • Standardized by ANSI

  • Primary language for relational databases

  • Used for:

    • manipulating data
    • querying data
    • defining database structures

Building a Local PostgreSQL Database with Docker
