Environment

Objective

• Docker: intuition
• Schema Design
• Data Generation
• Data Ingestion

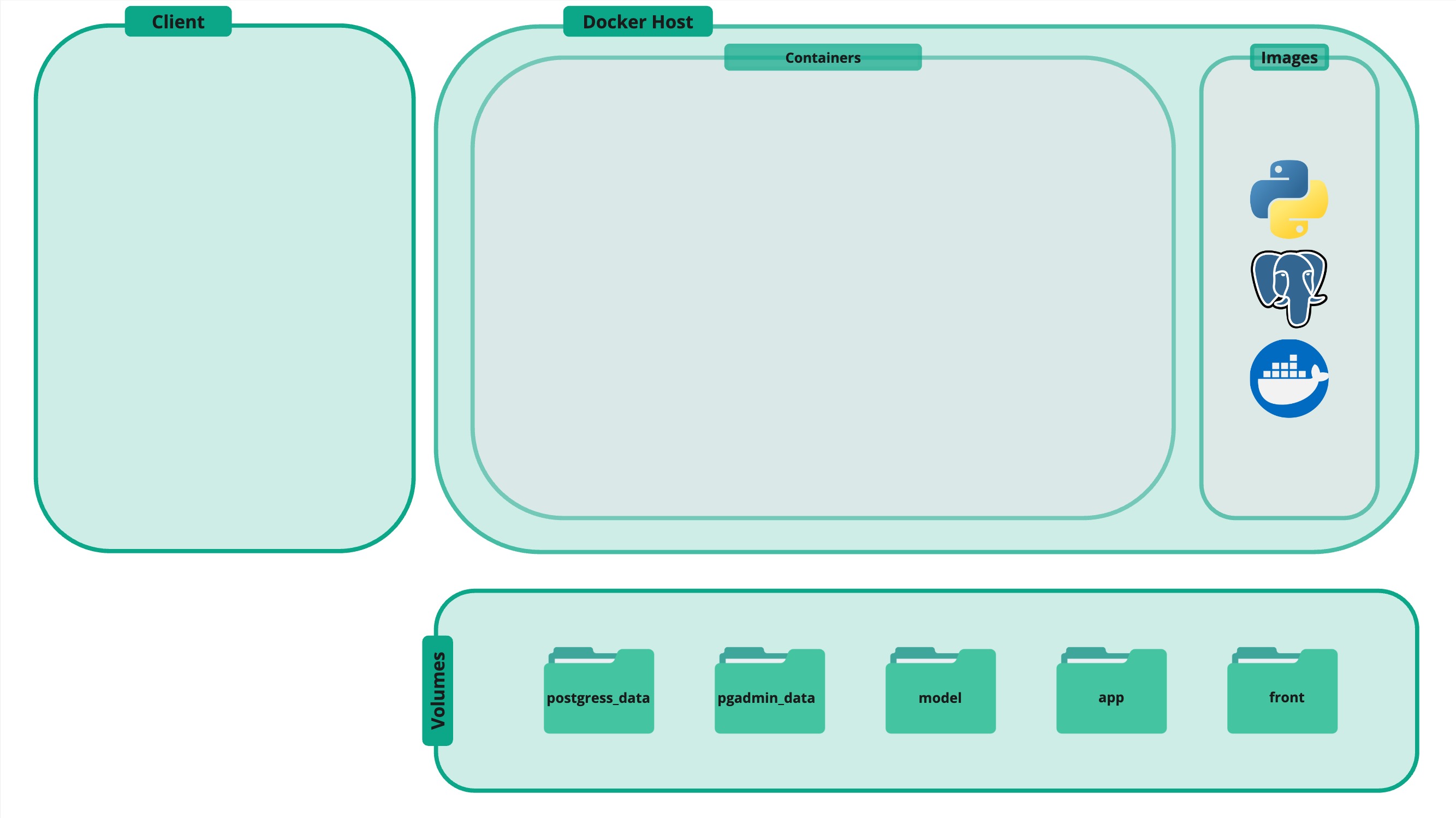

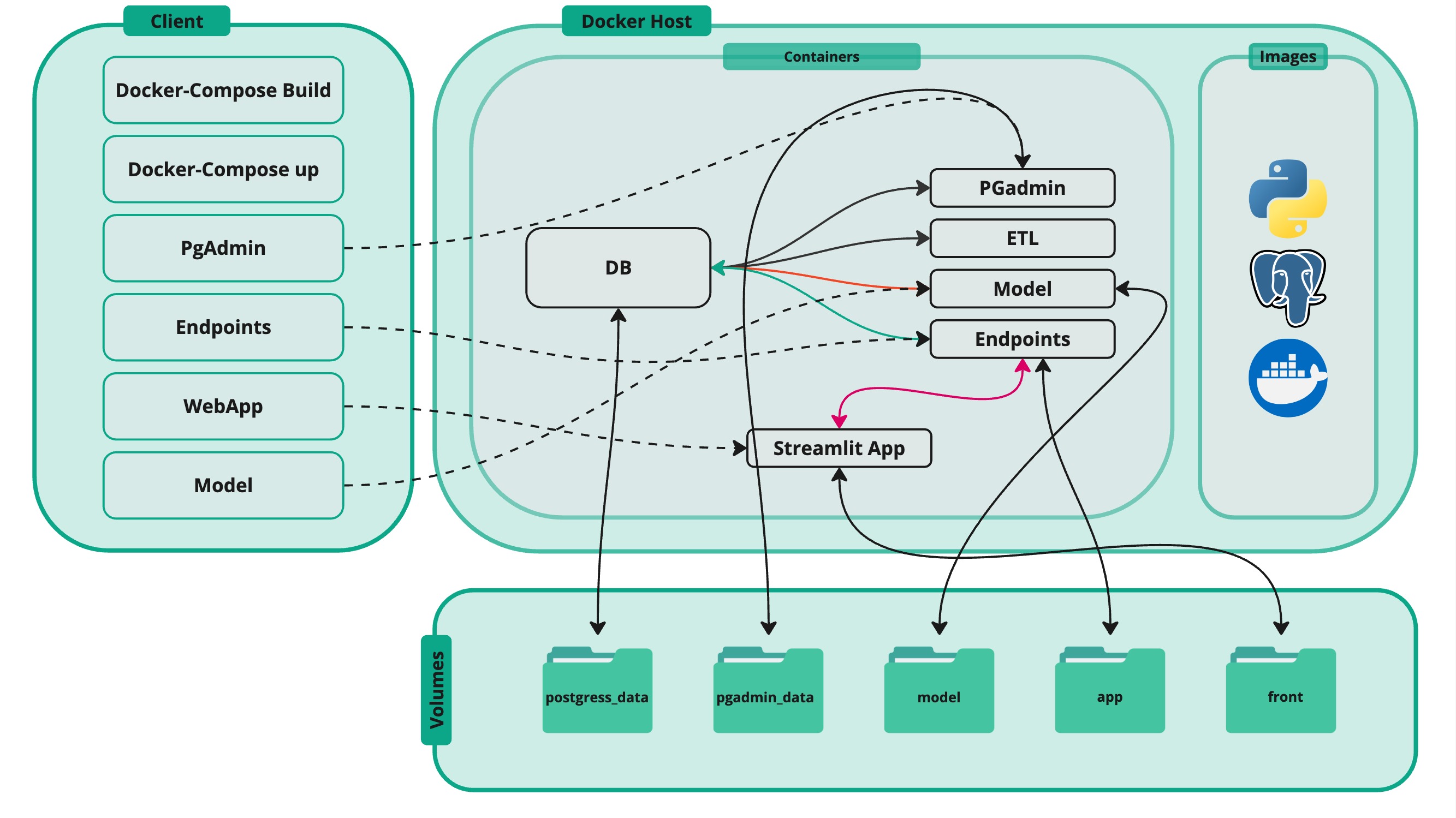

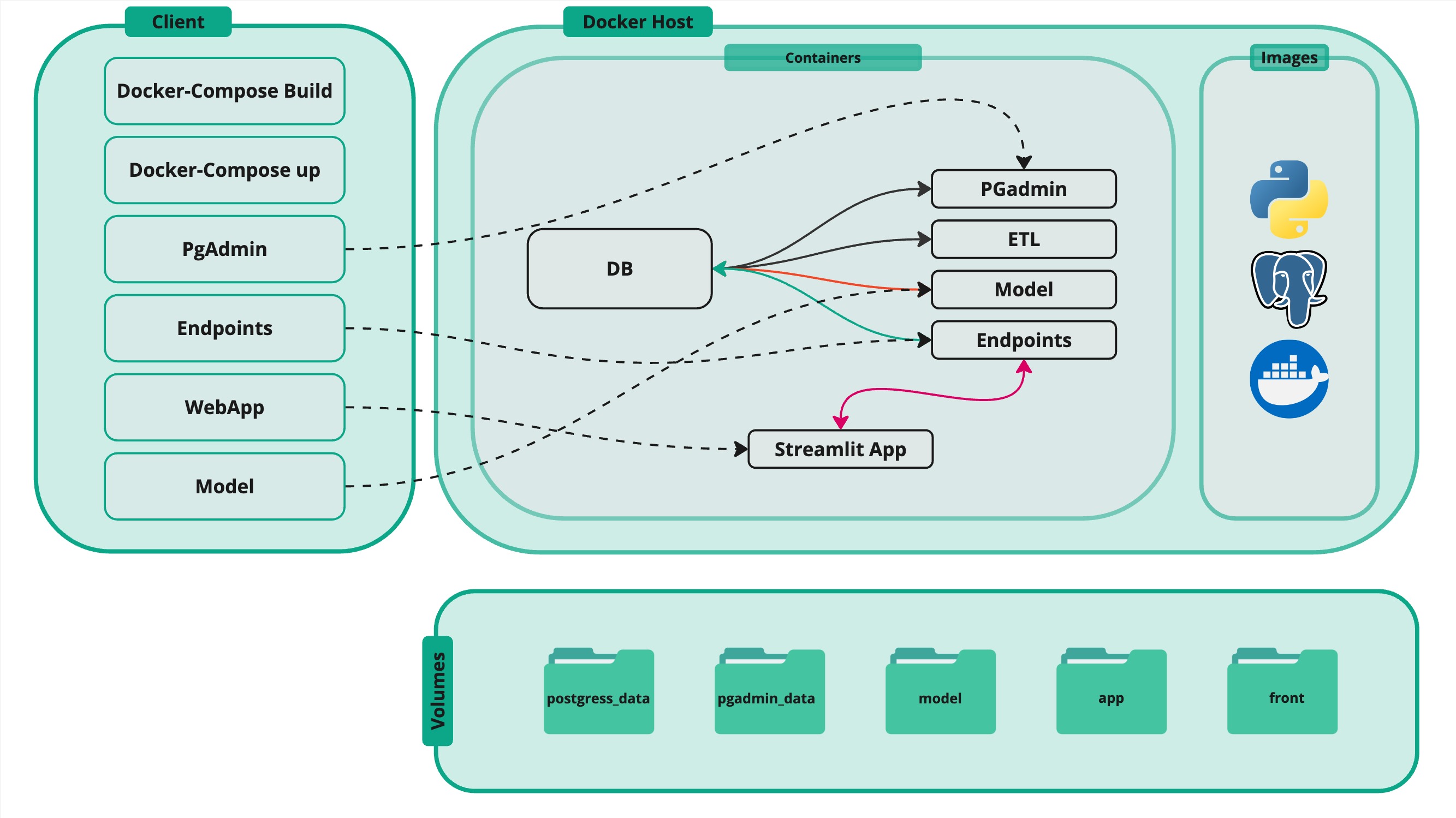

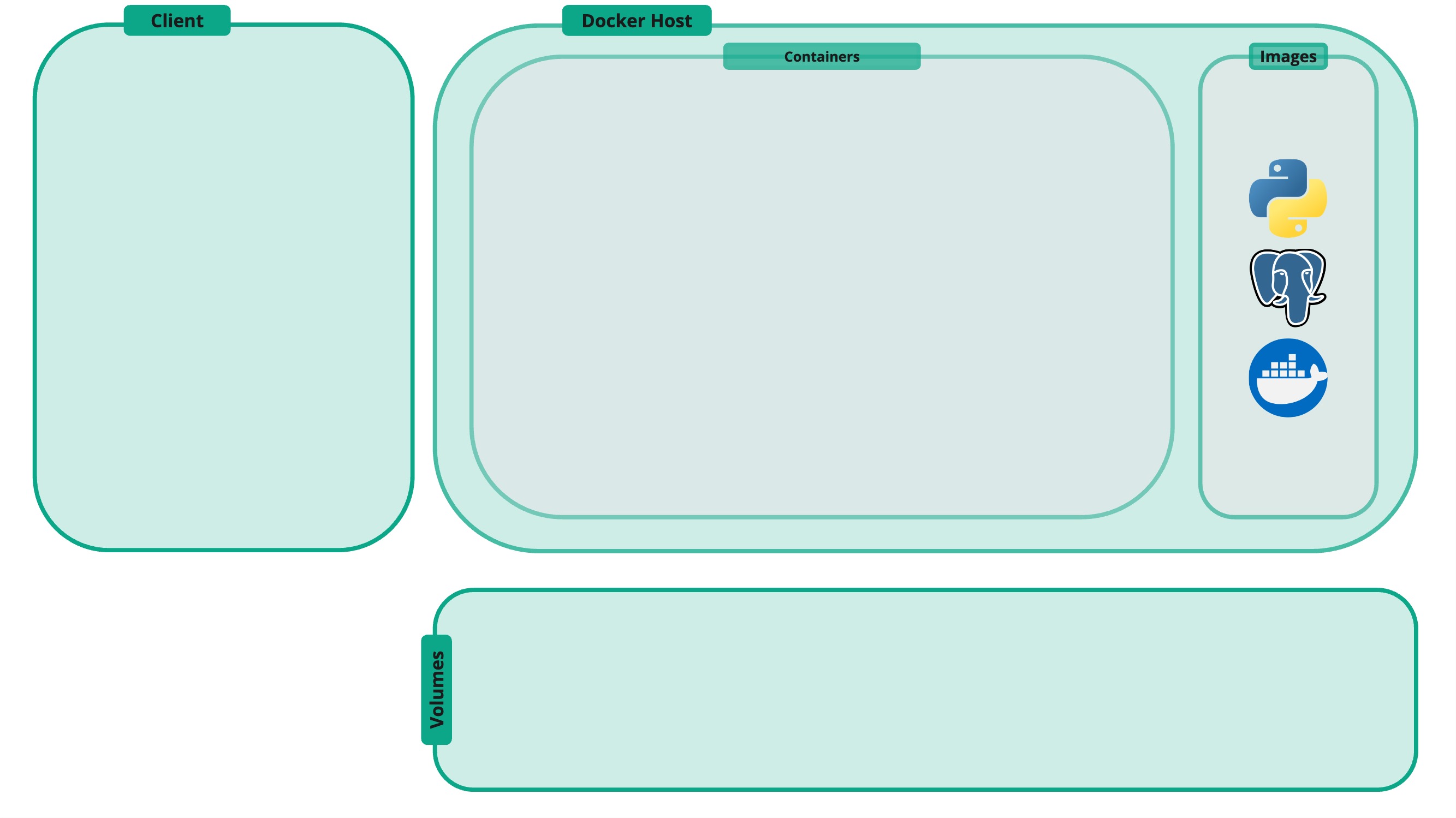

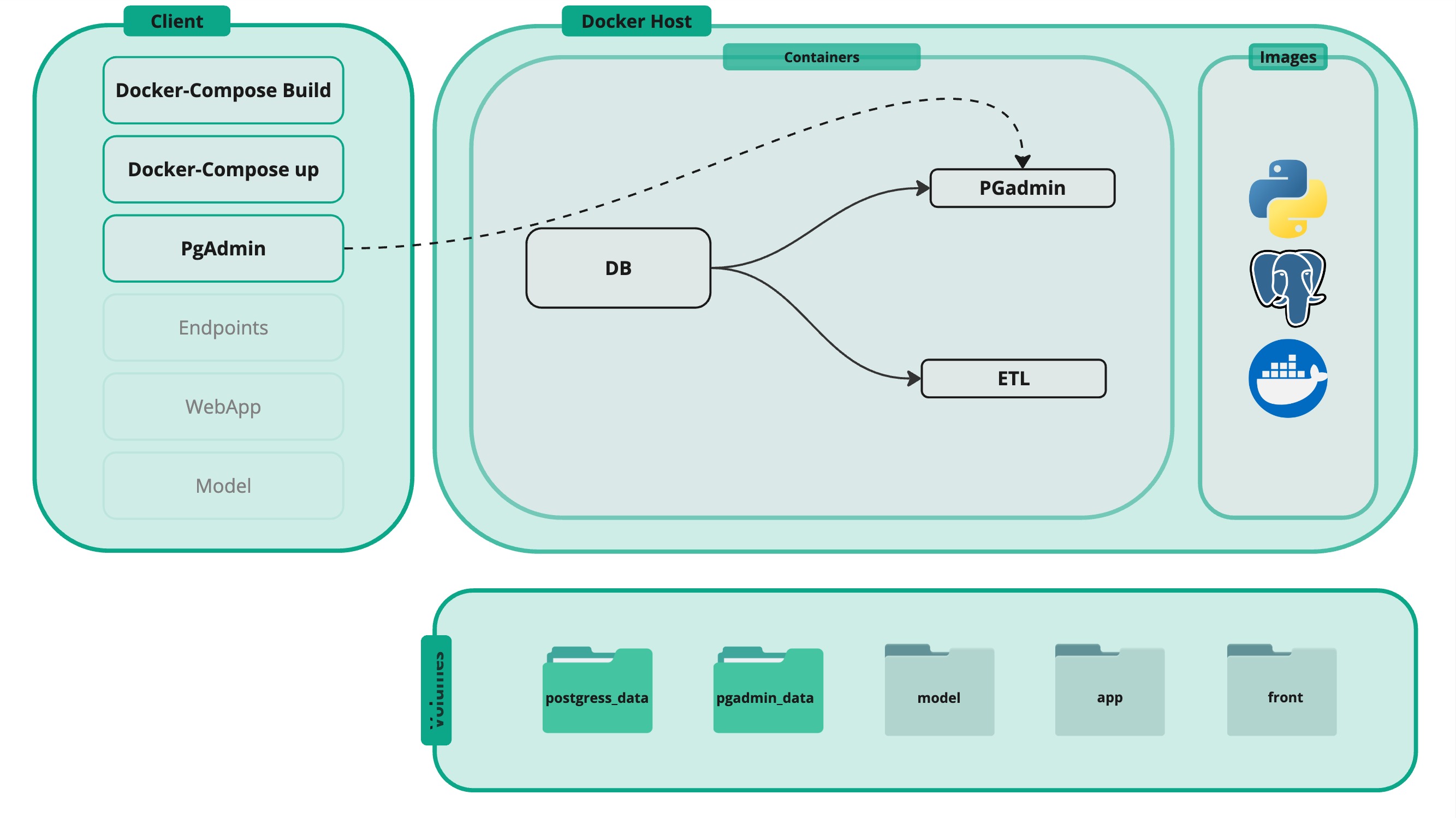

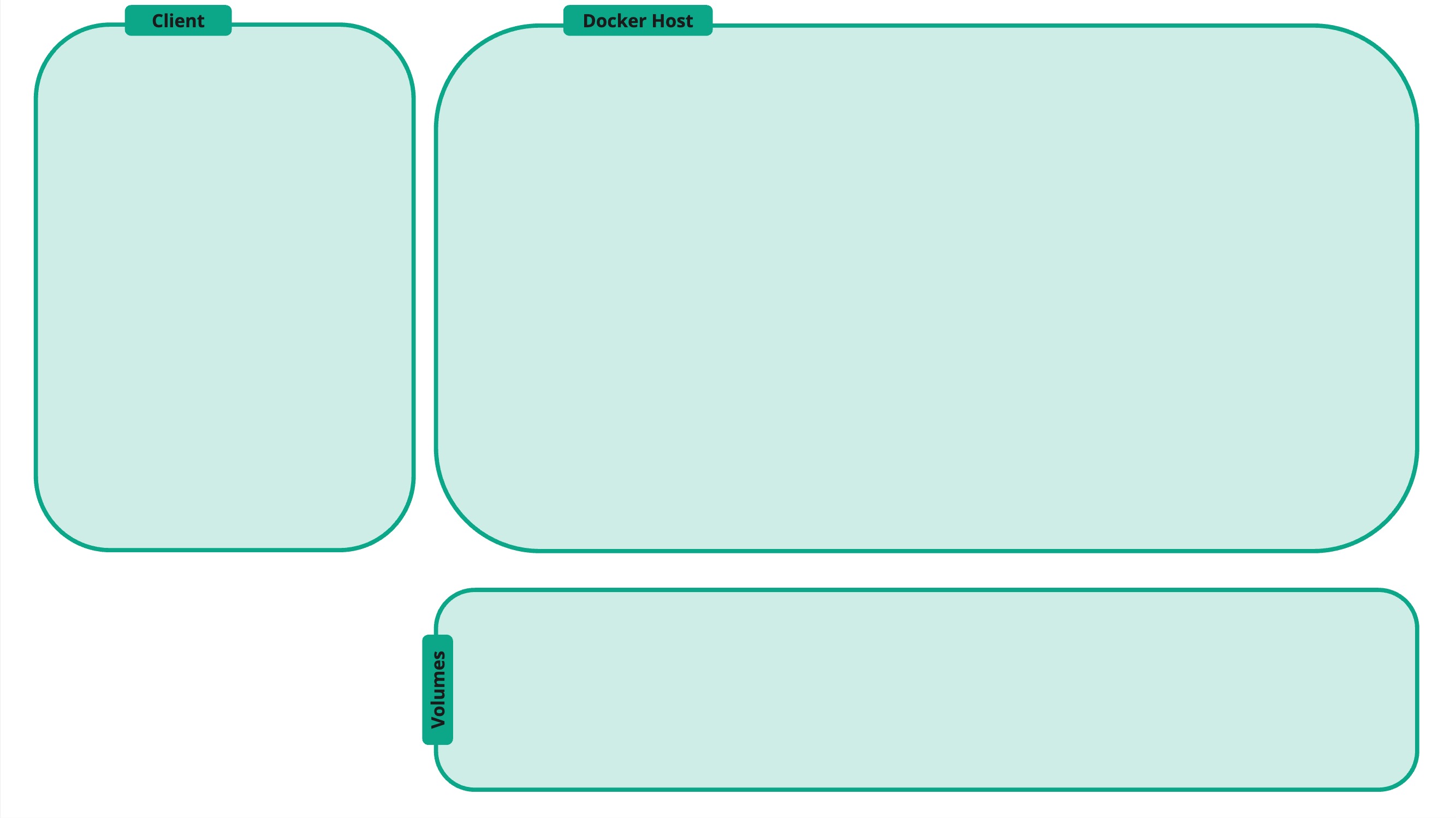

Dockerized Environment: 1

Dockerized Environment: 2

Dockerized Environment: 3

Dockerized Environment: 4

Dockerized Environment: 5

Dockerized Environment: We Need

For Today...

Docker files


                FROM python:3.10-slim-bullseye

                RUN apt-get update && apt-get install -y \
                    build-essential libpq-dev libfreetype6-dev libpng-dev libjpeg-dev \
                    libblas-dev liblapack-dev gfortran \
                    && rm -rf /var/lib/apt/lists/*

                # Set working directory
                WORKDIR /etl

                # Copy requirements file and install dependencies
                COPY requirements.txt requirements.txt
                RUN pip3 install --upgrade pip
                RUN pip3 install -r requirements.txt

                # Copy the rest of the application code
                COPY . .

                # Expose port 3000
                EXPOSE 3000

                # Command to run the python file
                CMD ["python", "etl.py"]




Docker-Compose


            services:
                db:
                    container_name: postgresql_db
                    image: postgres
                    restart: always
                    ports:
                    - 5432:5432
                    environment:
                    - POSTGRES_USER=${DB_USER}
                    - POSTGRES_PASSWORD=${DB_PASSWORD}
                    - POSTGRES_DB=${DB_NAME}
                    volumes:
                    - ./postgres_data:/var/lib/postgresql/data #persisting data
                pgadmin:
                    container_name: pgadmin
                    image: dpage/pgadmin4
                    environment:
                    - PGADMIN_DEFAULT_EMAIL=${PGADMIN_EMAIL}
                    - PGADMIN_DEFAULT_PASSWORD=${PGADMIN_PASSWORD}
                    ports:
                    - 5050:80 # for local browser (80 is the default port of the browsed)
                    volumes:
                    - ./pgadmin_data:/var/lib/pgadmin  # Persisting pgAdmin configuration and sessions
                    depends_on:
                    - db
                etl:
                    container_name: etl
                    build: ./etl
                    ports:
                    - 3000:3000
                    volumes:
                        - ./etl:/etl
                    depends_on:
                    - db


Execution


                    docker-compose up
